2020  Honda  FourTrax Rancher  4X4 Automatic DCT IRS EPS - AT-1010

2020 Honda Fourtrax Rancher 4X4 Automatic DCT IRS EPS

MEET OUR BEST RANCHERS EVER.

With eight models in Honda’s 2020 FourTrax Rancher lineup, it’s easy to get exactly the midsize ATV you’re looking for. And this year the entire line is better than ever, with some big feature updates like new front and rear racks, a new front utility compartment, wider front drive-shaft guards, an easier-to-use reverse system and new colors and graphics. Our automatic DCT models even give you a new override shifting control, making a great transmission choice even better. Hey, for work or fun, it’s your life. Choose the right Rancher, and life’s going to be easier than ever.

FEATURES

Engineering

• AUTOMATIC DCT

The Rancher’s Honda Automatic DCT transmission offers strong internals, fast shifts, excellent control, true compression-braking capability, and an automatic program that upshifts and downshifts while you concentrate on riding. It’s one of the best available choices you can make.

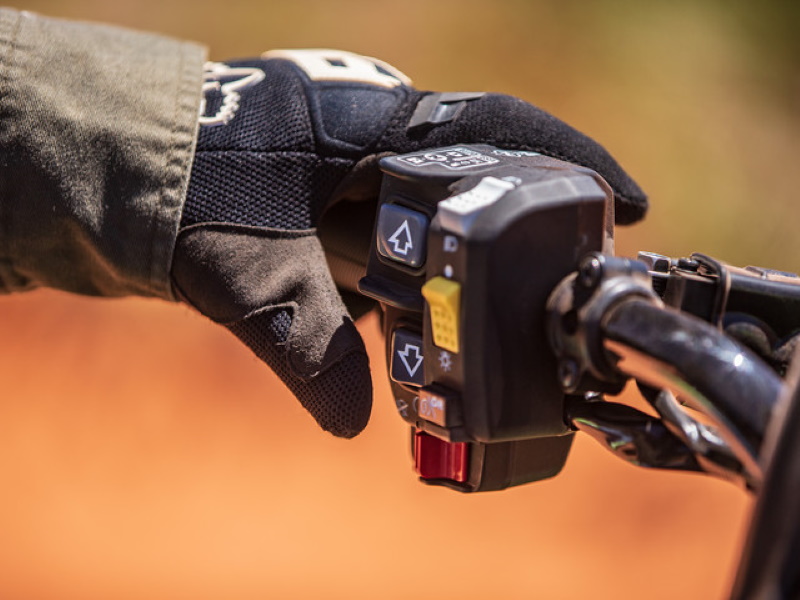

• AVAILABLE ELECTRIC SHIFT PROGRAM

The convenience of push-button shifting with the rugged design of a conventional ATV transmission—that’s what you get with Honda’s exclusive Electric Shift Program (ESP). Just push one button to upshift and one button to downshift. It’s a big plus when you’re wearing heavy work boots or overshoes, or riding in mud or snow. An added benefit: you get genuine compression braking for better speed control when operating in steep terrain.

• DIGITAL INSTRUMENTS

Easy to read and full of the information you want. In addition to the standard gear position indicator, speedometer, odometer, trip meter, and hour meter—you get readouts for fuel level, clock, coolant temperature, speed and Honda’s “maintenance minder” system (to help remind you when it’s time to have your ATV serviced). Comes with all Ranchers except the base model.

• DISC BRAKES (RANCHER IRS MODELS)

Rancher IRS models offer disc brakes all around for excellent braking performance.

• IN-TANK FUEL PUMP

The Rancher incorporates an in-tank fuel pump for cooler pump operation, and long pump life.

• LONGITUDINAL ENGINE LAYOUT

By orienting the crankshaft front to back in the chassis in our ATV and side-by-side engines, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

• SEMI-DRY-SUMP ENGINE DESIGN

Compact and lighter-weight, the Rancher’s overhead-valve, semi-dry-sump design creates an engine that's shorter from top to bottom. That returns two big benefits: it enhances handling by lowering the engine's center of gravity, and it also allows for better ground clearance.

• TRAXLOK® SELECTABLE 2WD/4WD

Our rock-solid system lets you choose either 2WD or 4WD instantly, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.

• WIDER FRONT DRIVESHAFT GUARDS

Designed to add even more coverage to the Rancher’s front axles and outboard CV joints, the new guards are another example of how Honda engineers strive to constantly keep improving one of the best ATVs on the planet.

Performance

• PROGRAMMED FUEL INJECTION

Being able to count on crisp performance and starting under any conditions is a must for anyone who depends on their ATV. Thanks to Honda Programmed Fuel Injection (PGM-FI)—featuring a 34mm throttle body, 12-hole injector, and an oxygen sensor that allows the fuel mapping to instantaneously adjust to any riding condition—the Rancher not only ensures trouble-free operation in the cold and at varying altitudes, it reduces emissions and enhances fuel efficiency.

Handling

• INDEPENDENT REAR SUSPENSION (IRS)

The Rancher Automatic DCT with Independent Rear Suspension (IRS) has over 8 inches of travel and 9 inches of clearance. That returns two big benefits: first, it helps ensure constant tire contact with the ground for superior traction; second, it gives you a smooth ride over rough terrain, so you don’t get beat up on the trail.

• AVAILABLE ELECTRIC POWER STEERING (EPS)

Both speed- and torque-sensitive, Honda's Electric Power Steering (on Rancher EPS models) excels at reducing steering effort and kickback through the handlebar. It's a big help when riding in ruts, over rocks or on long sidehills. A specially engineered mounting system for the EPS unit increases strength and rigidity.

• SHAFT DRIVE

Clean, efficient, proven, low-maintenance. Shaft drive is the perfect choice for a machine like this, and for riders who pile on the miles. You never have to worry about lubrication or adjustment out on the trail. And an added plus: it helps keep your ATV cleaner, too.

• SWINGARM REAR SUSPENSION

On select Rancher models, the rear swingarm incorporates an enclosed, solid-axle design for strength and rigidity. When you need to tow a heavy load, the swingarm eliminates rear suspension squat as the load is placed on the axle itself, not on the rear shock.

Convenience

• NEW FRONT AND REAR CARGO RACKS

The Rancher’s racks feature strong, steel construction, but now they include a larger flat area. Better yet, they’re designed to integrate with our new Honda Pro-Connect™ system. You can quickly attach and detach accessories like our cargo boxes, without tools, for added flexibility and convenience.

• NEW 1.9-LITER FRONT UTILITY BOX

The perfect size for small items you want to access quickly—like a cell phone, GPS, or a spare pair of gloves.

• NEW ELECTRONIC REVERSE

Available on our Automatic DCT and Electric Shift Program (ESP) models, this single lever is a big improvement when it comes to convenience and ease of operation. It’s especially useful when you have to shift from forward to reverse repeatedly, like when you’re plowing snow.

Comfort

• A COMFORTABLE SEAT

A plush seat and open rider triangle (bar/seat/pegs) teams up with the suspension to really treat you right. Superior ergonomics have always been a Honda priority, and the Rancher is no exception. With thick, durable foam, it’s exceptionally comfortable.

Style

• Honda PHANTOM CAMO®

A favorite option for many riders, our exclusive Honda Phantom Camo® is a treatment that helps your ATV blend in to a wide range of environments.
