2020  Honda  Pioneer 500  Honda Phantom Camo® - AT-1026

2020 PIONEER 500

BIG FUN. LITTLE RESTRICTIONS.

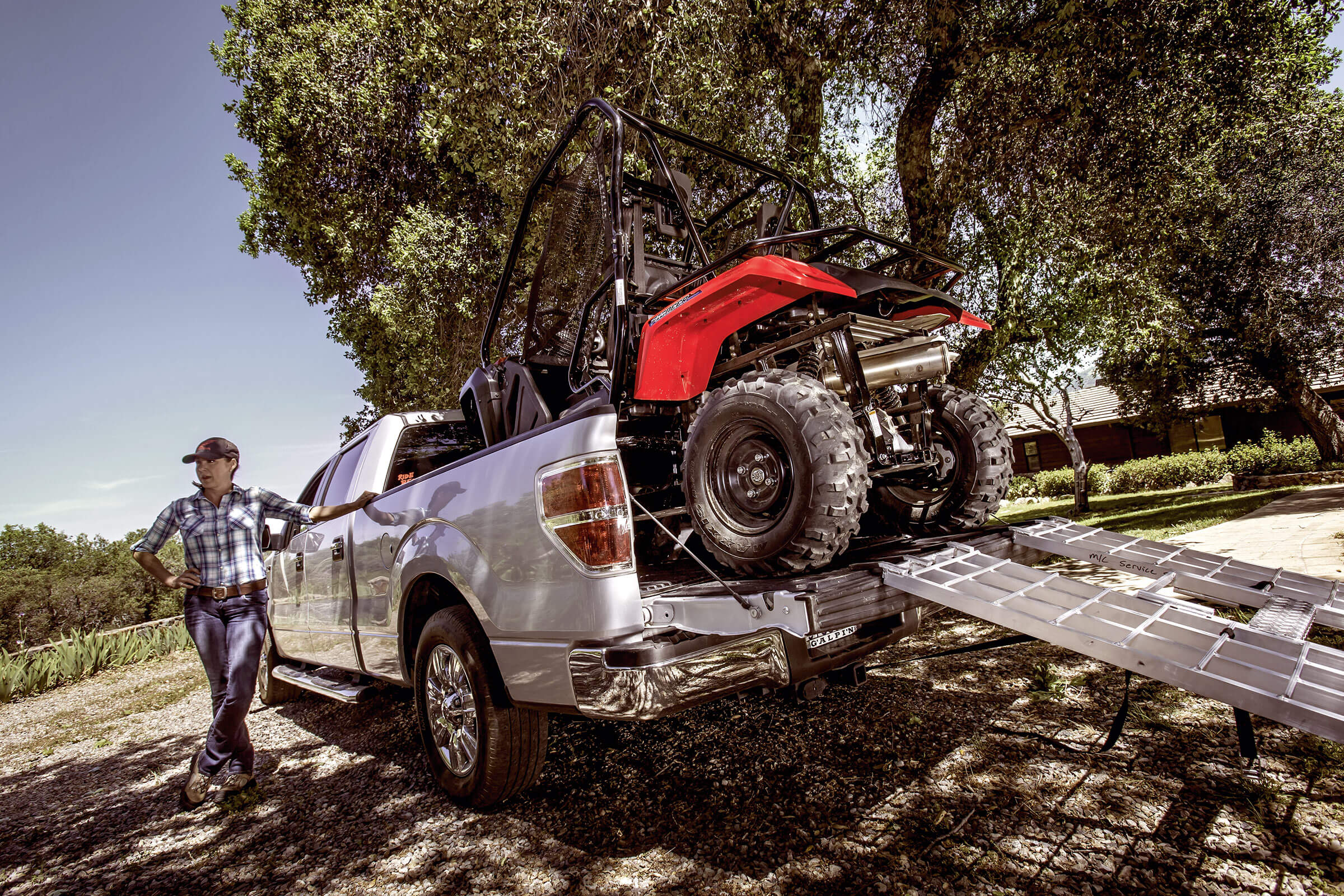

For work or fun, the Honda Pioneer 500 gets the job done. At 50-inches wide, it comfortably seats two, so you and a friend can explore any trail, even the ones with width restrictions. And it also fits in a full-sized pickup bed. It’s loaded with features like automatic transmission with AT/MT modes, and a powerful engine that delivers plenty of low-RPM torque. Whether you’re on the job or hitting the trails, get the most out of every ride with the Pioneer 500.

SPECIFICATIONS

Available Colors Red, White, Moose Brown, Honda Phantom Camo®

Model ID SXS500M2


ENGINE

- Engine Type 475cc liquid cooled single cylinder four-stroke

- Bore And Stroke 92.0mm x 71.5mm

- Compression Ratio 9.5:1

- Induction Electronic fuel injection (PGM-FI), 36mm throttle body

- Ignition Full-transistorized type with electronic advance

DRIVE TRAIN

Clutch Automatic

Transmission Five-speed automatic transmission with AT/MT modes

with paddle shifting and reverse. Two drive modes include

2WD and 4WD

Driveline Direct front and rear driveshafts

CHASSIS SUSPENSION BRAKES

Front Suspension Independent double-wishbone; 5.9 inches of travel

Rear Suspension Independent double-wishbone with preload adjustablility; 5.9 inches of travel

Front Brake Dual 200mm hydraulic disc

Rear Brake 170mm hydraulic disc

Front/Rear Tires 24 x 8-12  / 24 x 10-12

DIMENSIONS

Length 102.6 inches

Width  50.0 inches

Height 71.3 inches

Wheelbase 73 inches

Towing Capacity 1000 pounds

Ground Clearance 8.5 inches

Turning Radius 12.8 feet

Curb Weight 1025 pounds

- Includes all standard equipment, required fluids and full tank of fuel.

  Fuel Capacity 4.1 gallons, including 1.1-gallon reserve

FACTORY WARRANTY INFORMATION

One Year Transferable limited warranty; extended coverage available with a Honda Protection Plan.

Note: Recommended for Drivers 16 years of age and older.
